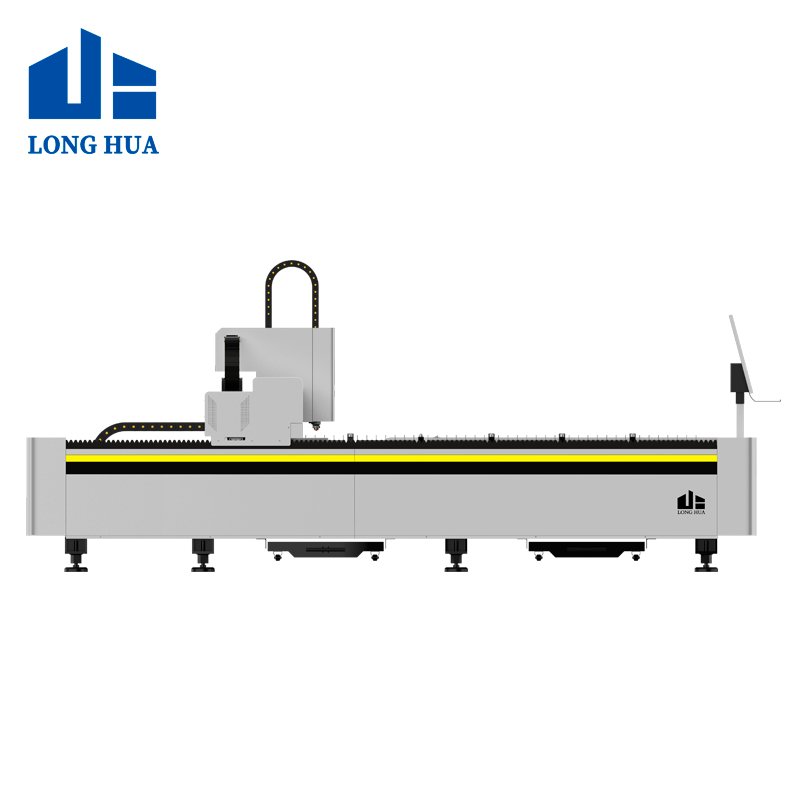

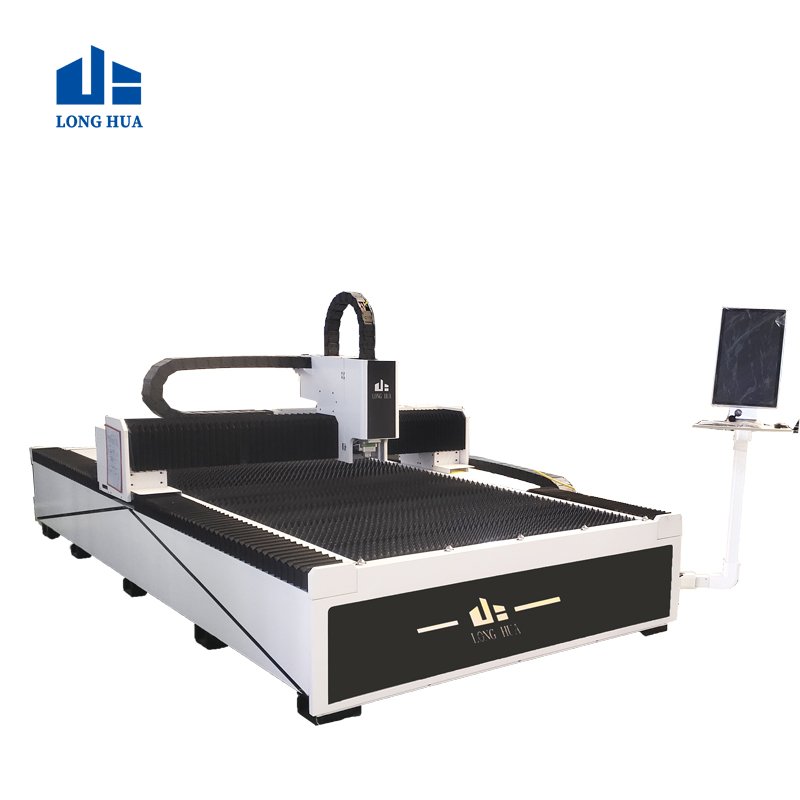

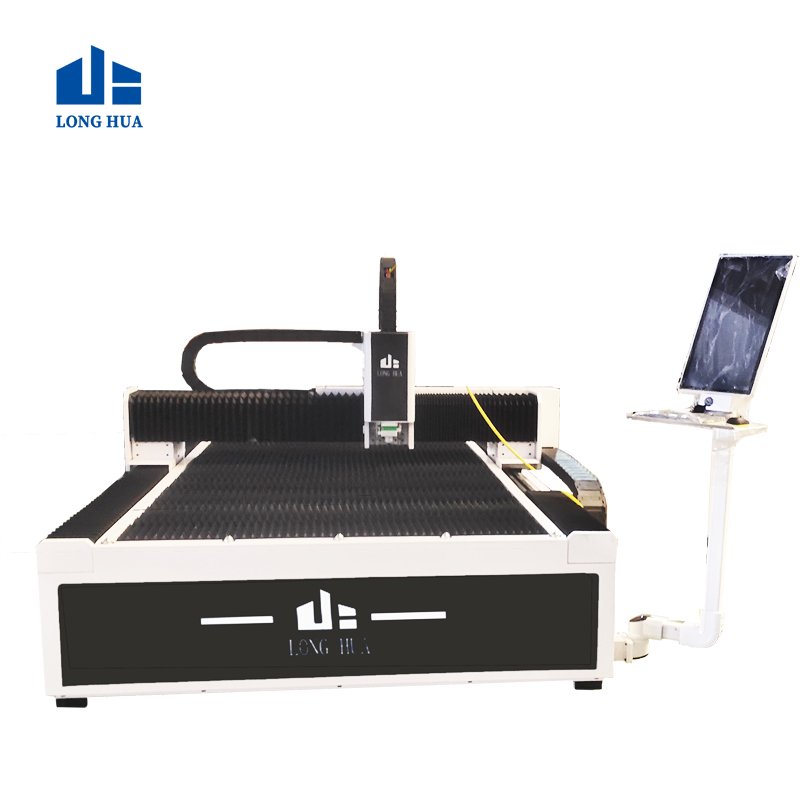

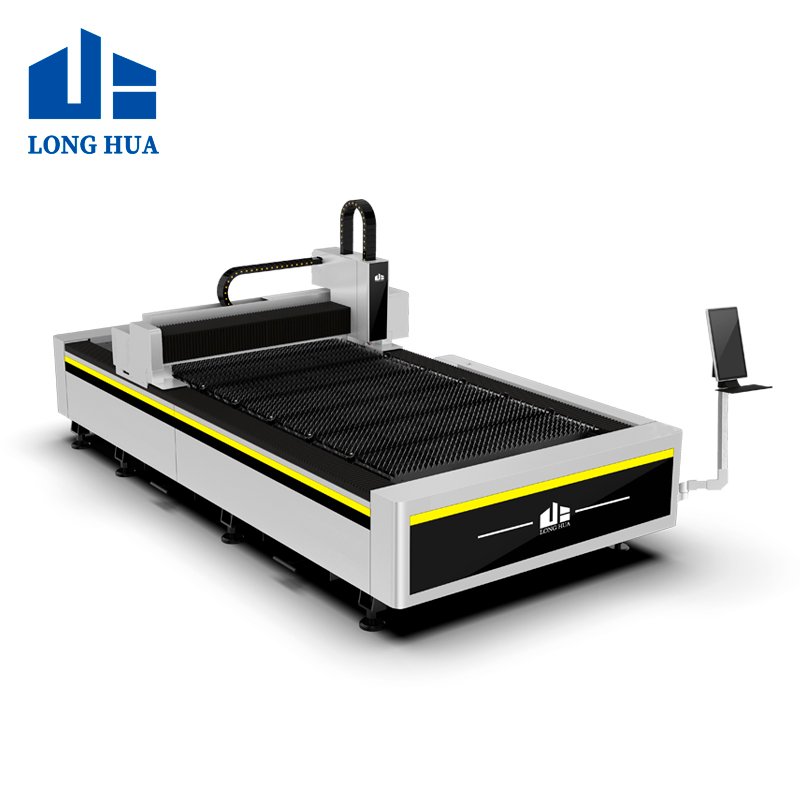

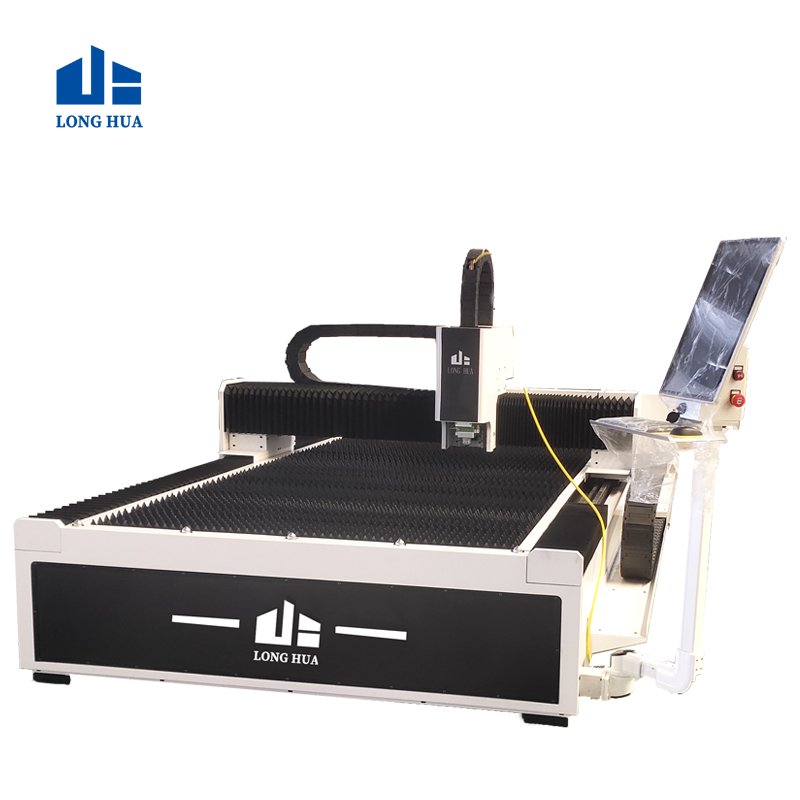

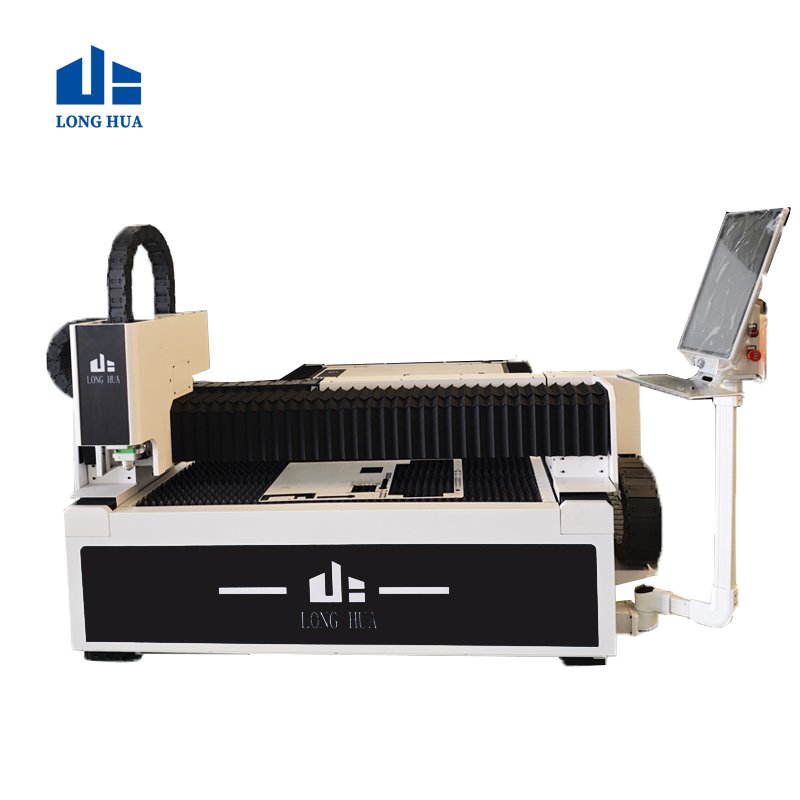

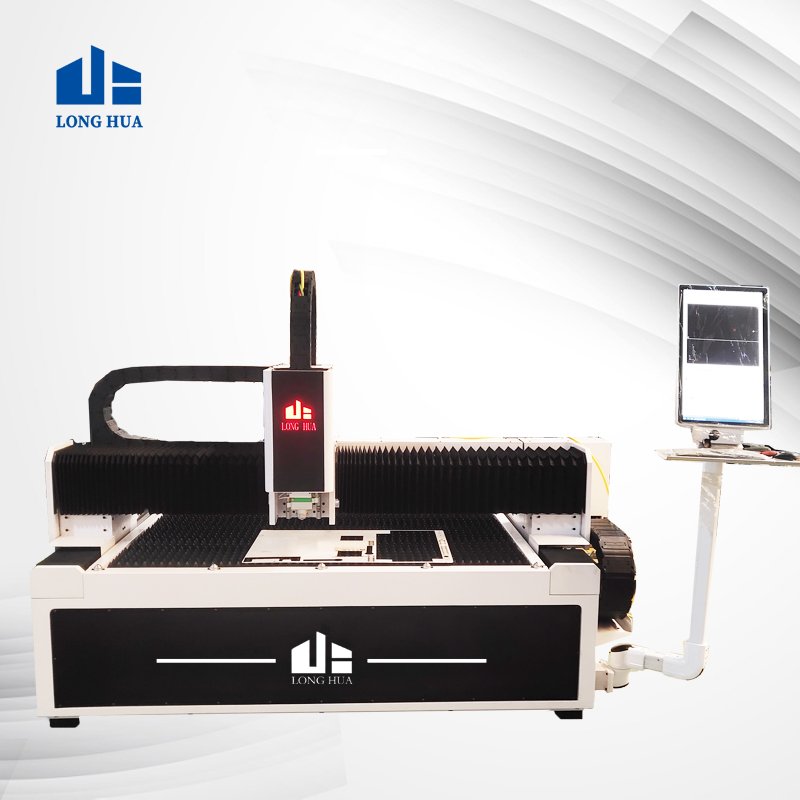

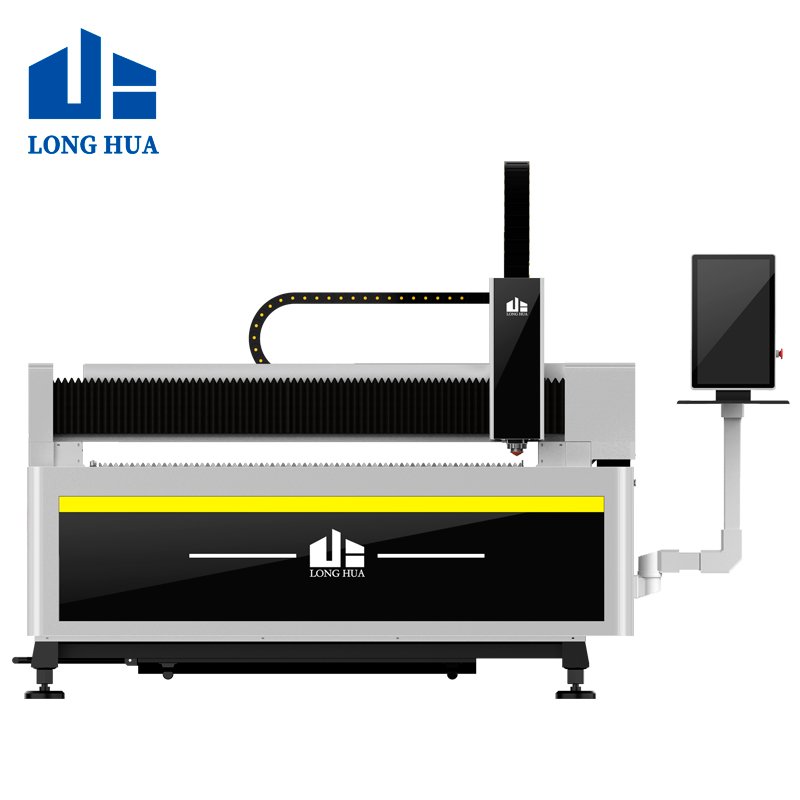

LF Single Platform Metal Laser Cutting Machine

Details display

1.Integrated design with compact footprint

The machine adopts an all-in-one design with a small footprint, which can be flexibly placed to fit factories of various sizes or integrated into production lines.









2.Partitioned dust removal system

This partitioned dust removal function effectively reduces dust pollution during the cutting process and realizes an environmentally friendly and pollution-free working space.





3.Frame structure

The gantry structure and embedded cast aluminum beams make the equipment rigid, stable and explosion-proof.









 4.CNC control system，Support multi-language system,

1.CypCutE plane cutting software is mainly used for medium-power busbar cutting systems.
2.The control system is more reasonable, developed and stable; with a central controller to control the timing of the switchgear, it protects the key components of life well.
3.The software interface with user-friendly design supports AI, DXF, PLT, Gerber and other graphic data formats.
4.The key electrical components of the control cabinet are from Taiwan, Germany, and Japan.



5.Cooling system

Standard industrial cold water system, using the world-renowned brand: hanli;

Temperature control accuracy can reach ± ​​0.5 ℃, cooling is stable;

Two temperature control modes are available, suitable for different occasions;

Multiple settings and fault display functions; Multiple alarm protection functions;





Technical Parameters

Model	LF-3015/4015/4020/6020
Working Area	3000*1500mm Customized
Laser Generator	Raycus/IPG/MAX
Laser Power	1000w/1500w/2000w/3000w/4000W/6000W
Location Accuracy	±0.01mm
Location Accuracy	±0.01mm
Max Moving Speed	140m/min
Materials Thickness	Max 40mm
Machine Color	Customized
Machine Warranty	3 Years
Applicable Materials	Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate,ect.
Specified voltage and frequency	380V/50Hz~60Hz/60A(Customized)
